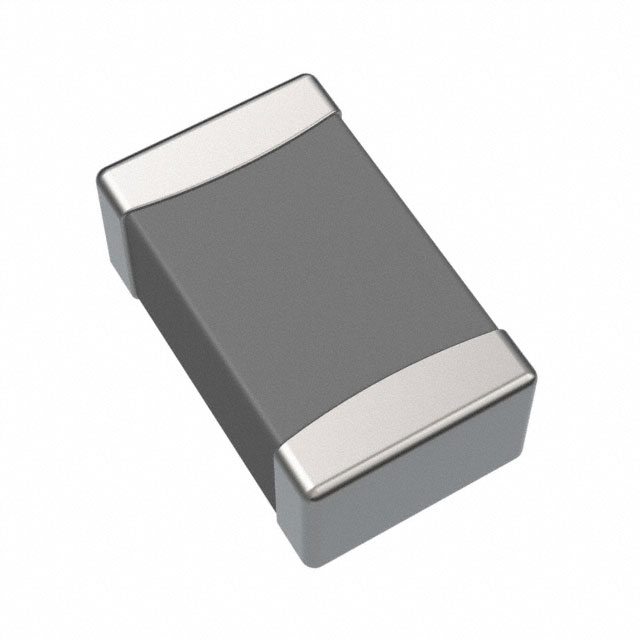

LPWI201208SR47T
Part number: LPWI201208SR47T
Description: FIXED IND 470NH 3.8A 35MOHM SMD
Manufacturer Wickmann / Littelfuse
Encapsulation Tape & Reel (TR)
Quantity 3000
RoHS 1
TYPEDESCRIPTION
Mfr"Wickmann / Littelfuse"
Tolerance ±20%
Package / Case 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Mounting Type Surface Mount
Shielding Shielded
Type Thin Film
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 35mOhm Max
Current - Saturation (Isat) 4A
Material - Core Metal Composite
Inductance Frequency - Test 1 MHz
Supplier Device Package 0805
Height - Seated (Max) 0.031" (0.80mm)
Inductance 470 nH
Current Rating (Amps) 3.8 A
