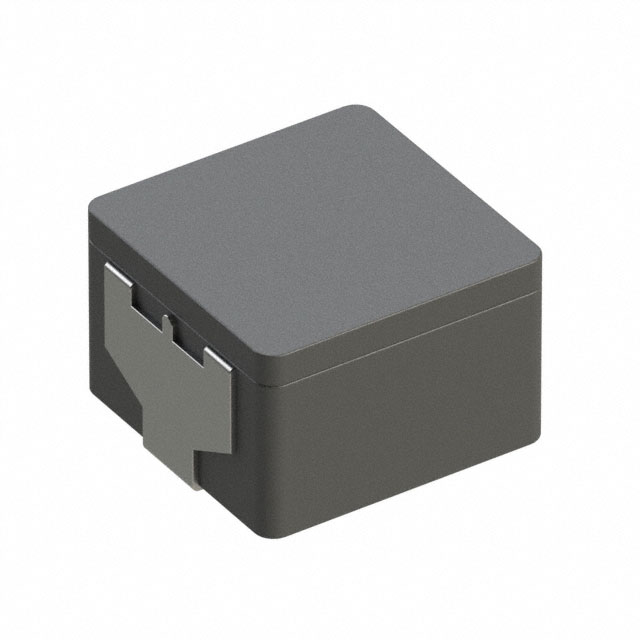

| Part number: | ETQ-P4M150KFN |
| Description: | FIXED IND 15UH 4.2A 70.18MOHM SM |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±20% |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension | 0.252" L x 0.236" W (6.40mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 150°C |
| DC Resistance (DCR) | 70.18mOhm Max |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 6.7A |
| Material - Core | Metal Composite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.189" (4.80mm) |
| Inductance | 15 µH |
| Current Rating (Amps) | 4.2 A |
|
