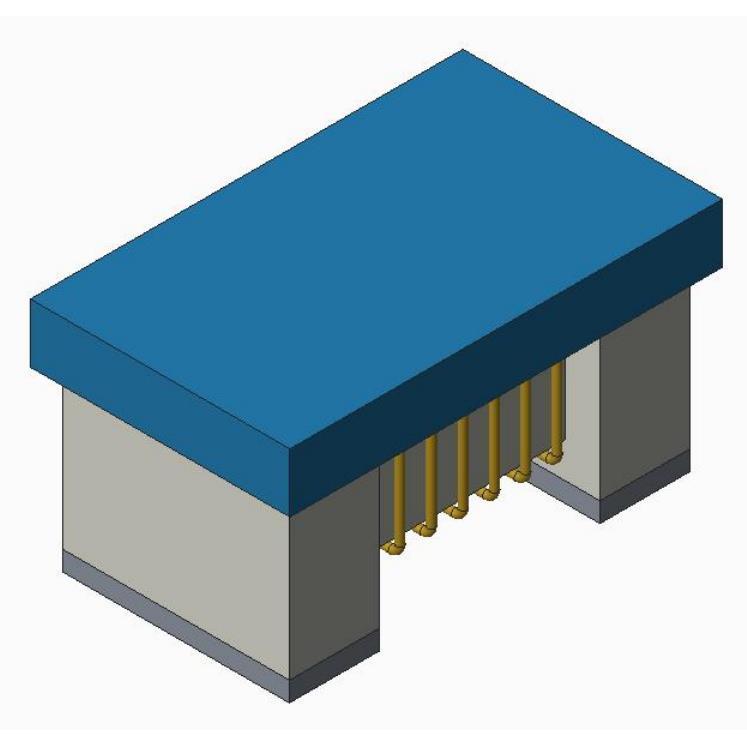

| Part number: | 1008CS-361EGTS |
| Description: | FIXED IND 360NH 470MA 1.1OHM SMD |
| Manufacturer | Delta Electronics/Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics/Components" |
| Tolerance | ±2% |
| Package / Case | 1008 (2520 Metric) |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 1.1Ohm |
| Q @ Freq | 45 @ 100MHz |
| Frequency - Self Resonant | 530MHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 25 MHz |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.080" (2.03mm) |
| Inductance | 360 nH |
| Current Rating (Amps) | 470 mA |
|
