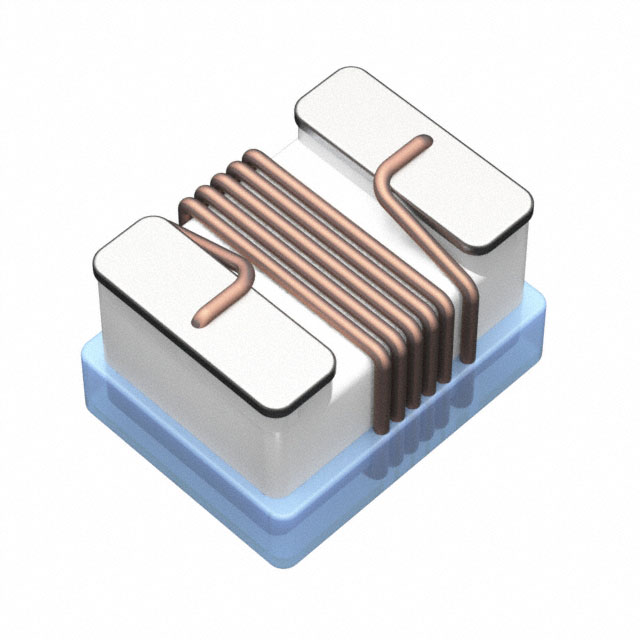

| Part number: | 0805CS-222EJFS |
| Description: | FIXED IND 2.2UH 320MA 1.1OHM SMD |
| Manufacturer | Delta Electronics/Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics/Components" |
| Tolerance | ±5% |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.090" L x 0.067" W (2.29mm x 1.71mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 1.1Ohm |
| Q @ Freq | 15 @ 7.96MHz |
| Frequency - Self Resonant | 110MHz |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 7.96 MHz |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.057" (1.45mm) |
| Inductance | 2.2 µH |
| Current Rating (Amps) | 320 mA |
|
