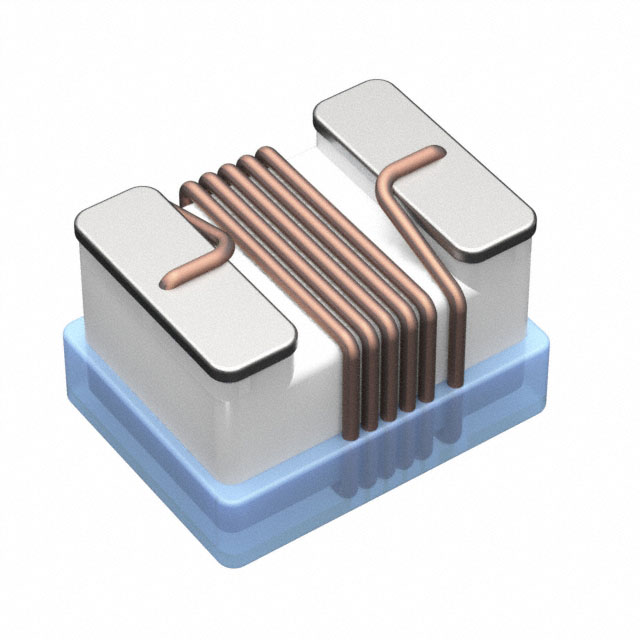

| Part number: | 0805CT-680EGTS |
| Description: | FIXED IND 68NH 500MA 400MOHM SMD |
| Manufacturer | Delta Electronics/Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics/Components" |
| Tolerance | ±2% |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.090" L x 0.068" W (2.29mm x 1.73mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 400mOhm |
| Q @ Freq | 50 @ 500MHz |
| Frequency - Self Resonant | 1.5GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 200 MHz |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.041" (1.03mm) |
| Inductance | 68 nH |
| Current Rating (Amps) | 500 mA |
|
