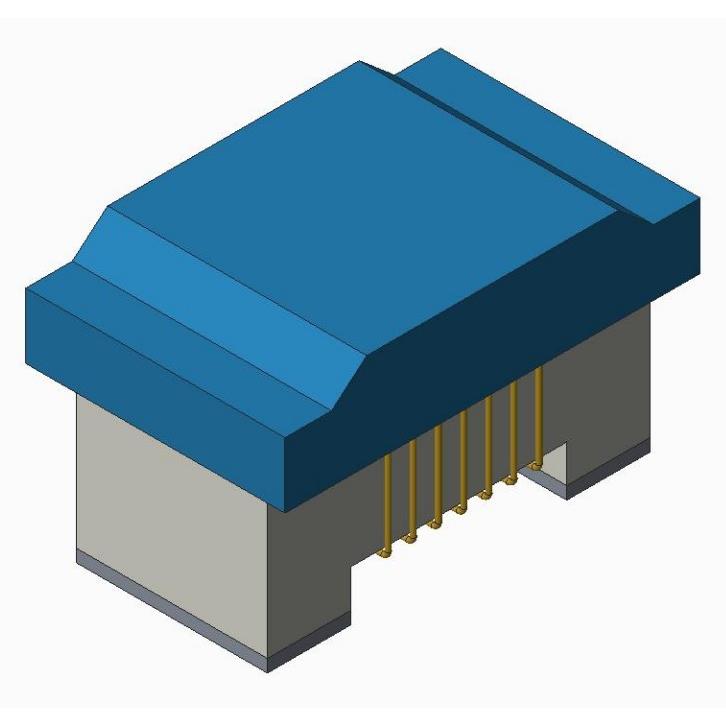

| Part number: | 0603CS-270EKTS |
| Description: | FIXED IND 27NH 600MA 220MOHM SMD |
| Manufacturer | Delta Electronics/Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics/Components" |
| Tolerance | ±10% |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.071" L x 0.046" W (1.80mm x 1.16mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 220mOhm |
| Q @ Freq | 40 @ 250MHz |
| Frequency - Self Resonant | 2.8GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 250 MHz |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.040" (1.02mm) |
| Inductance | 27 nH |
| Current Rating (Amps) | 600 mA |
|
