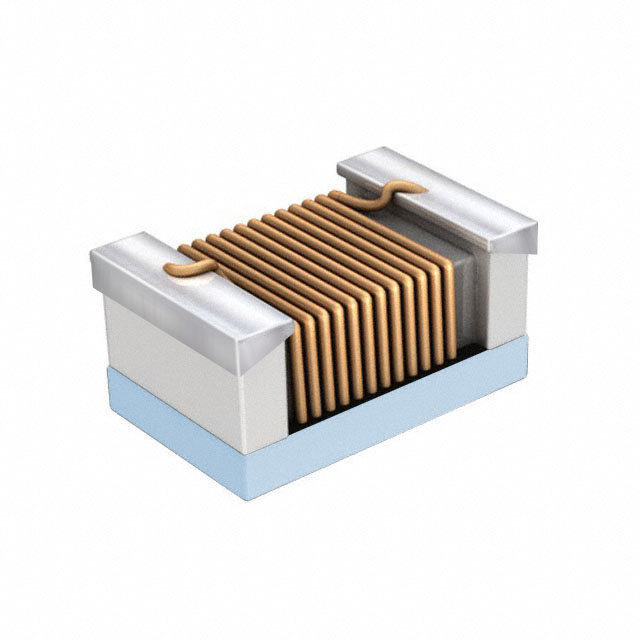

| Part number: | 0402HC-3N6EDTS |
| Description: | FIXED IND 3.6NH 900MA 40MOHM SMD |
| Manufacturer | Delta Electronics/Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics/Components" |
| Tolerance | ±0.5nH |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.043" L x 0.024" W (1.10mm x 0.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 40mOhm |
| Q @ Freq | 30 @ 250MHz |
| Frequency - Self Resonant | 9.5GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 100 MHz |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Inductance | 3.6 nH |
| Current Rating (Amps) | 900 mA |
|
