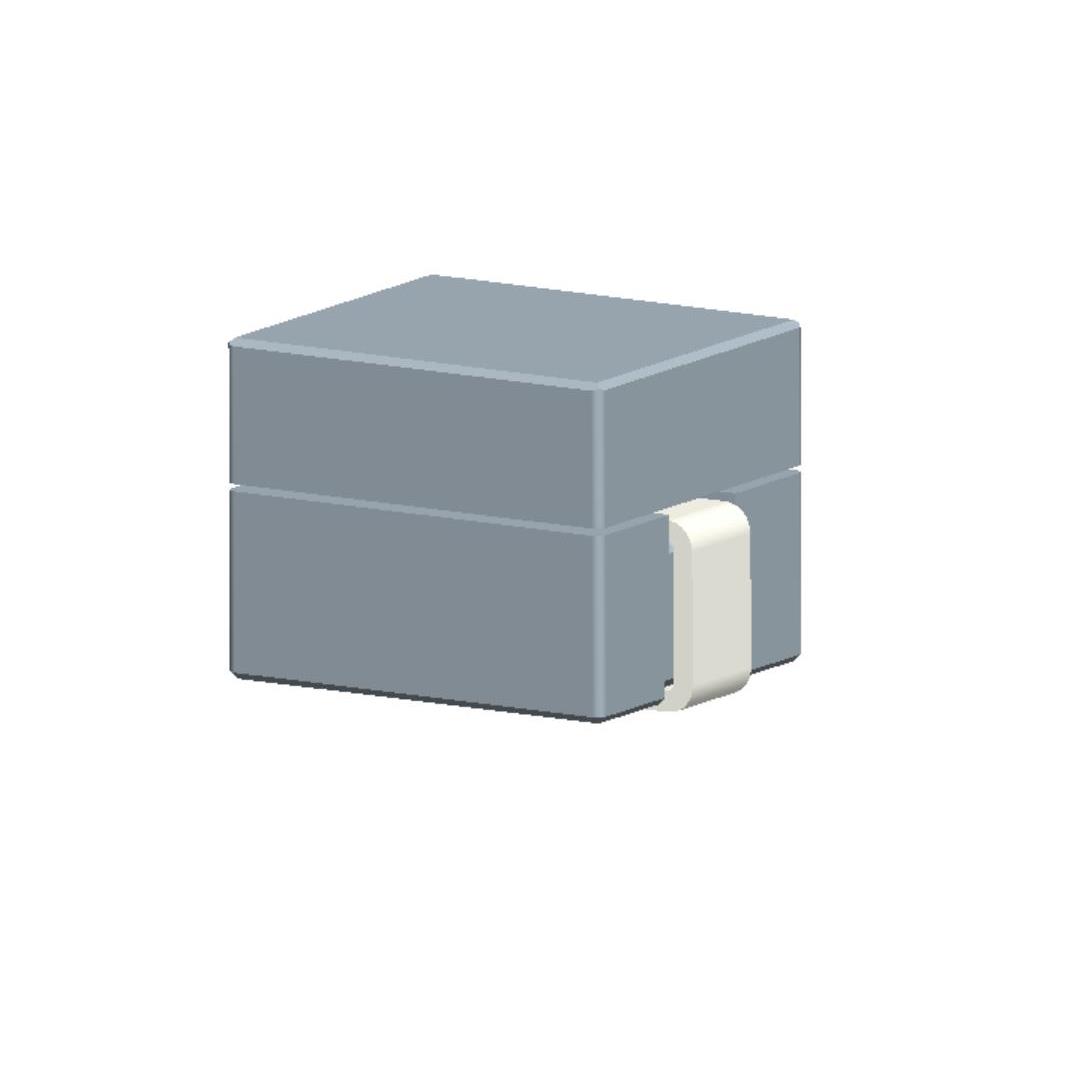

| Part number: | HCB1175-201H |
| Description: | FIXED IND 200NH 37A 0.47MOHM SMD |
| Manufacturer | Delta Electronics/Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics/Components" |
| Tolerance | ±15% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.433" L x 0.283" W (11.00mm x 7.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 0.47mOhm |
| Current - Saturation (Isat) | 52A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.283" (7.20mm) |
| Inductance | 200 nH |
| Current Rating (Amps) | 37 A |
|
