| Part number: | HCB1065-311L |

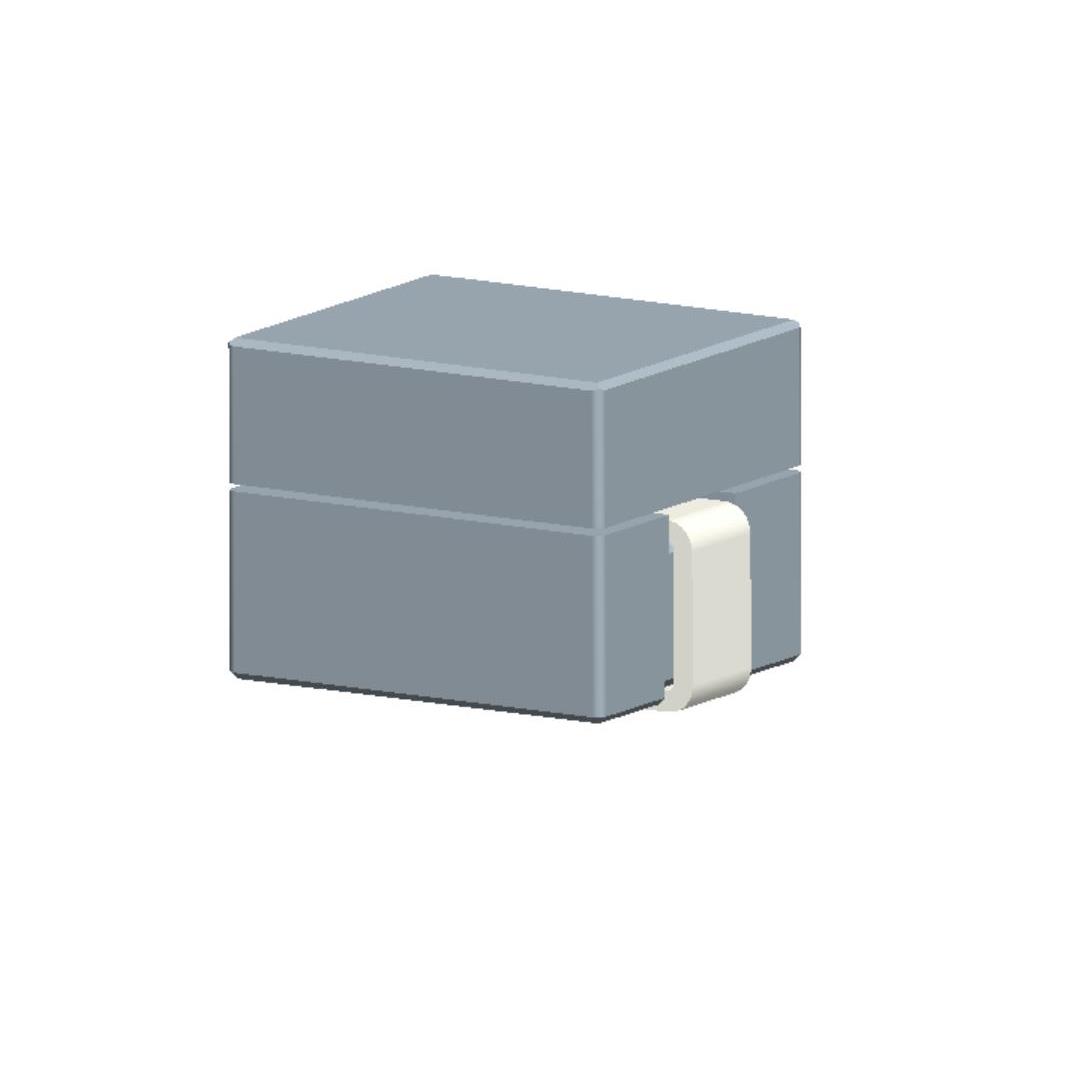

| Description: | FIXED IND 310NH 60A 0.29MOHM SMD |
| Manufacturer | Delta Electronics/Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 800 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics/Components" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.409" L x 0.315" W (10.40mm x 8.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 0.29mOhm |
| Current - Saturation (Isat) | 30A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Inductance | 310 nH |
| Current Rating (Amps) | 60 A |
|
