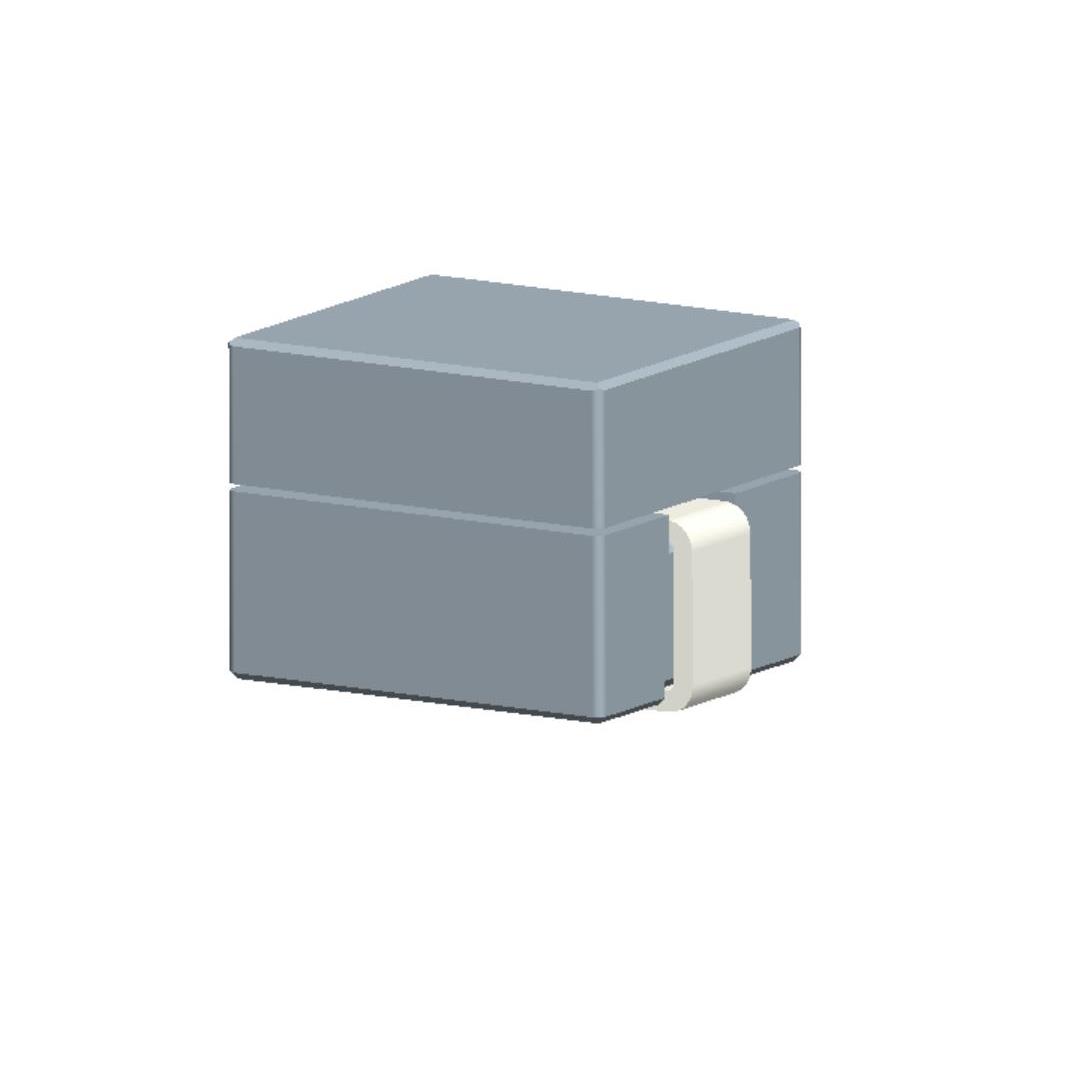

| Part number: | HCB1050-800L |
| Description: | FIXED IND 80NH 46A 0.245MOHM SMD |
| Manufacturer | Delta Electronics/Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 950 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics/Components" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.409" L x 0.276" W (10.40mm x 7.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 0.245mOhm |
| Current - Saturation (Isat) | 92A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Inductance | 80 nH |
| Current Rating (Amps) | 46 A |
|
