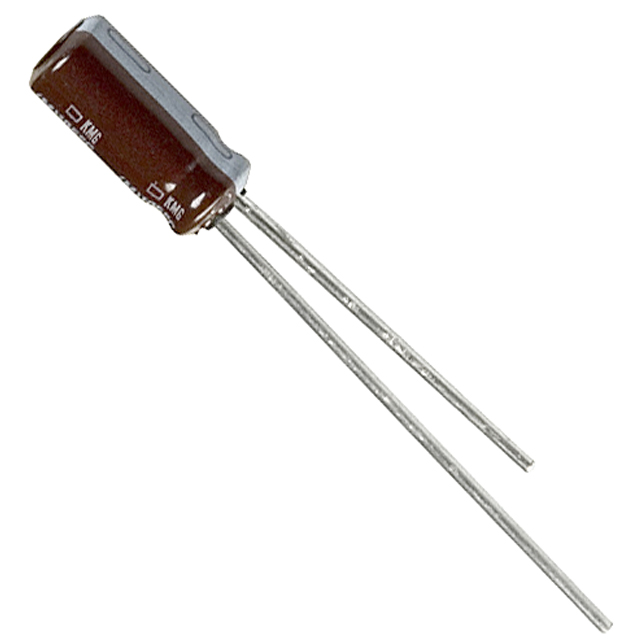

| Part number: | EKZE250ELL331MJC5S |
| Description: | CAP ALUM 330UF 20% 25V RADIAL TH |
| Manufacturer | United Chemi-Con |
| Encapsulation | Bulk |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.197" (5.00mm) |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Capacitance | 330 µF |
| Voltage - Rated | 25 V |
| Impedance | 53 mOhms |
| Ripple Current @ Low Frequency | 515 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.03 A @ 100 kHz |
|
