| Part number: | MP2013AGJE-C672-P |
| Description: | IC REG LIN POS ADJ 150MA TSOT23 |
| Manufacturer | MPS (Monolithic Power Systems) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "MPS (Monolithic Power Systems)" |

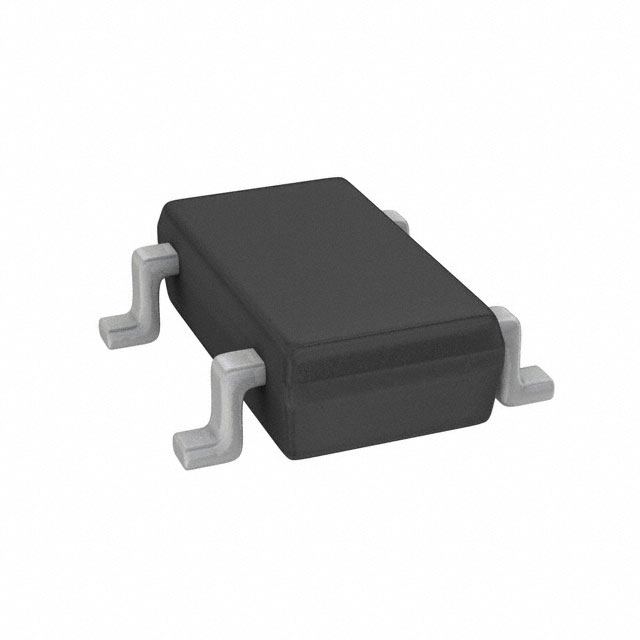

| Package / Case | SOT-23-4 Thin, TSOT-23-4 |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 9 µA |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | TSOT-23-4 |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 1.215V |
| Control Features | Enable |
| PSRR | 58dB ~ 41dB (100Hz ~ 1kHz) |
| Voltage Dropout (Max) | 0.85V @ 150mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 22 µA |
|
