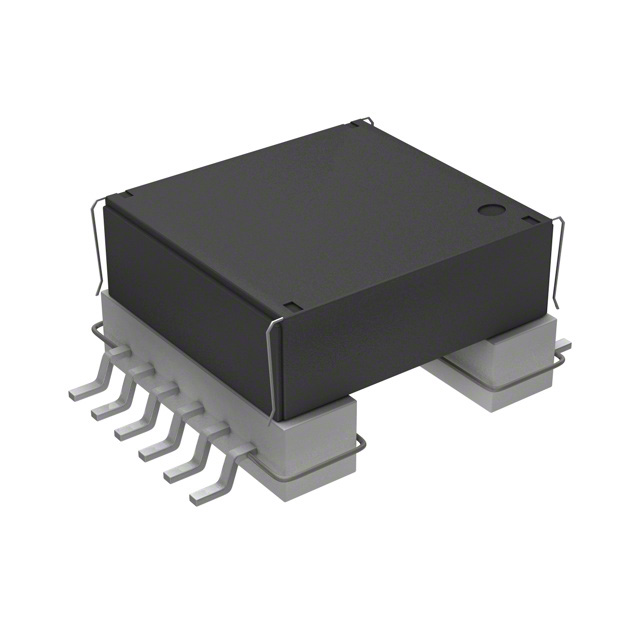

| Part number: | PCA20EFD-U05S003 |
| Description: | XFMR CAP CHAR CONF DC/DC 12UH SM |
| Manufacturer | TDK Corporation |
| Encapsulation | Tray |
| Quantity | 10 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "TDK Corporation" |
| Size / Dimension | 0.866" L x 0.850" W (22.00mm x 21.60mm) |
| Mounting Type | Surface Mount |
| Type | Configurable (For DC/DC) |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Capacitor Charger |
| Voltage - Isolation | 500Vrms |
| Footprint | 0.866" L x 1.173" W (22.00mm x 29.80mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Inductance @ Frequency | Parallel 12µH @ 10kHz, Series 430µH @ 10kHz |
|
