| Part number: | AD7564BR |
| Description: | IC DAC 12BIT A-OUT 28SOIC |
| Manufacturer | Linear Technology (Analog Devices, Inc.) |
| Encapsulation | Tube |
| Quantity | 27 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Linear Technology (Analog Devices, Inc.)" |

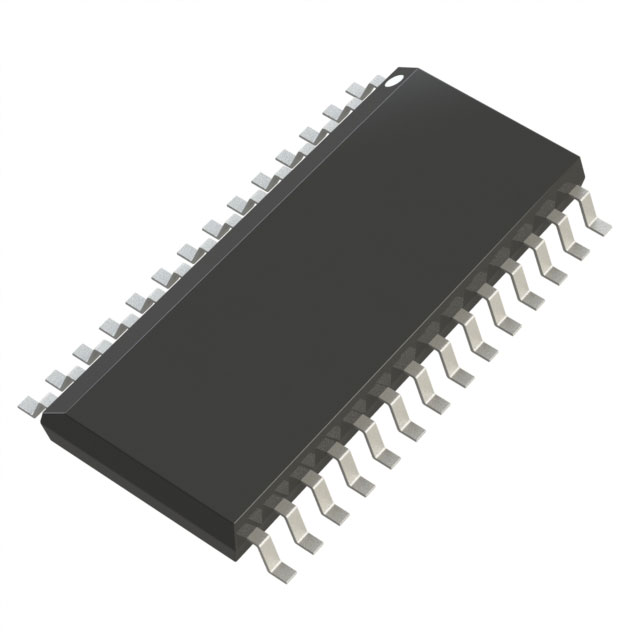

| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 550µs (Typ) |
| Supplier Device Package | 28-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) |
| Differential Output | Yes |
| DigiKey Programmable | Not Verified |
|
