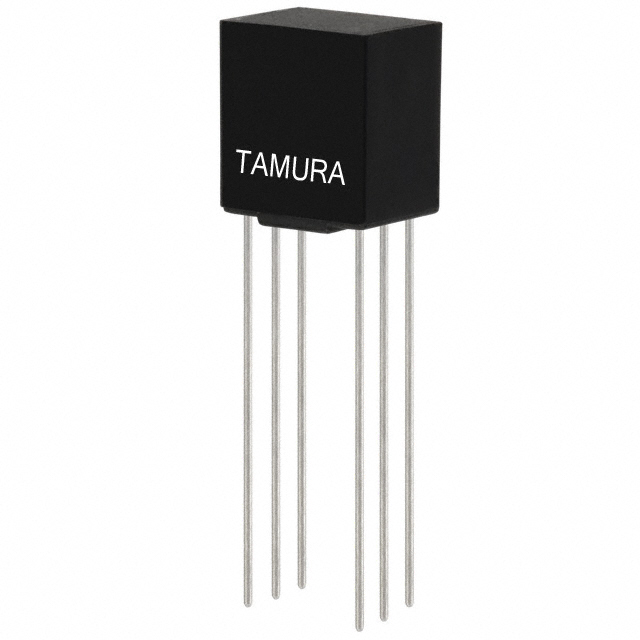

| Part number: | MET-27 |
| Description: | AUDIO XFMR 1KCT / 600CT TH |
| Manufacturer | Tamura |
| Encapsulation | Tube |
| Quantity | 550 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Tamura" |
| Size / Dimension | 0.409" L x 0.310" W (10.40mm x 7.87mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Transformer Type | Data/Voice Coupling |
| Turns Ratio - Primary:Secondary | 1.29:1 |
| Frequency Range | 300Hz ~ 100kHz |
| Voltage - Isolation | 500VRMS @ 30 Seconds |
| Height - Seated (Max) | 0.465" (11.80mm) |
| Impedance - Primary (Ohms) | 1kCT |
| Impedance - Secondary (Ohms) | 600CT |
| DC Resistance (DCR) - Primary | 95Ohm |
| DC Resistance (DCR) - Secondary | 85Ohm |
| Frequency Response | ±2dB |
| Power Level | 50mW |
|
