| Part number: | DSC8102BI5-PROGRAMMABLE |
| Description: | MEMS OSC PRG XO LVPECL 2.25-3.6V |
| Manufacturer | Roving Networks (Microchip Technology) |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Roving Networks (Microchip Technology)" |

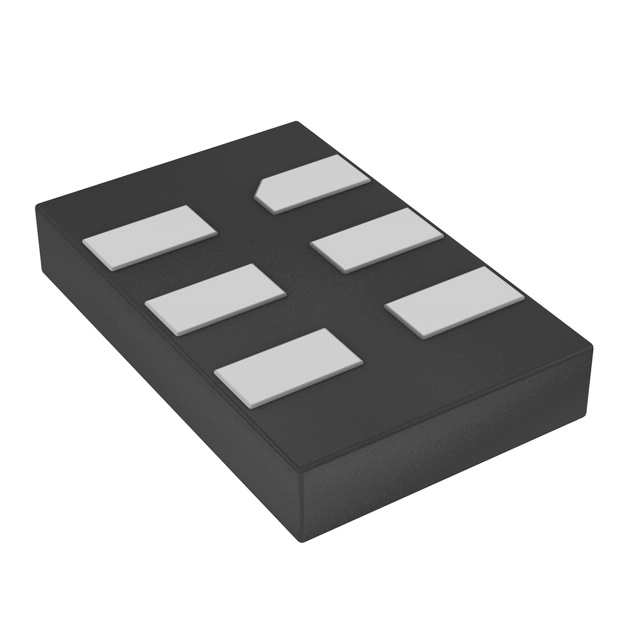

| Package / Case | 6-VDFN |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Function | Standby |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.25V ~ 3.6V |
| Ratings | AEC-Q100 |
| Current - Supply (Max) | 58mA |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Frequency Stability (Total) | ±10ppm |
| Available Frequency Range | 10 MHz ~ 460 MHz |
| Current - Supply (Disable) (Max) | 95 µA |
| Base Resonator | MEMS |
|
