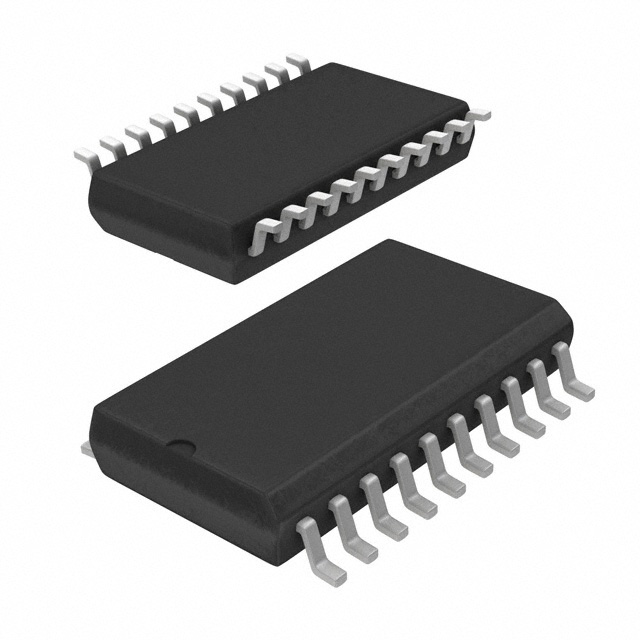

| Part number: | MAX506BEWP |
| Description: | IC DAC 8BIT V-OUT 20SOIC |
| Manufacturer | Maxim Integrated / Analog Devices |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Maxim Integrated / Analog Devices" |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 6µs (Typ) |
| Supplier Device Package | 20-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | -, ±1 (Max) |
| Differential Output | No |
| DigiKey Programmable | Not Verified |
|
