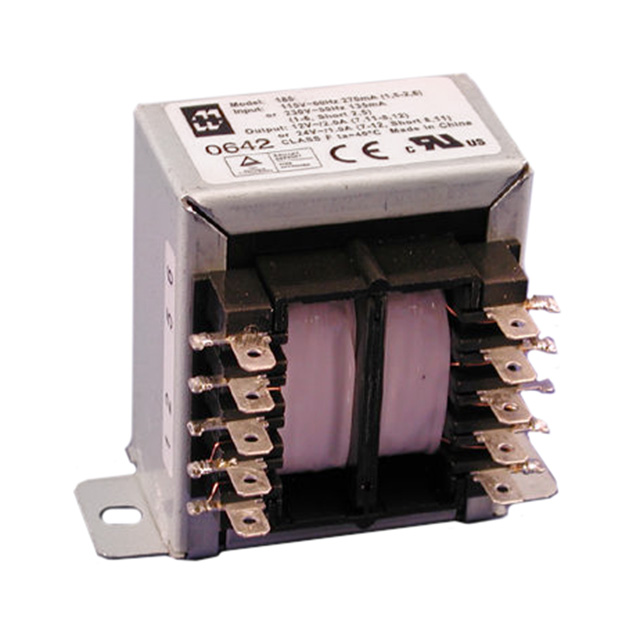

| Part number: | 185E28 |
| Description: | PWR XFMR LAMINATED 80VA CHAS MT |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 63.50mm L x 66.29mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 2.5 lbs (1.1 kg) |
| Termination Style | Solder, Quick Connect |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 80VA |
| Voltage - Isolation | 4000Vrms |
| Current - Output (Max) | Parallel 5.6A, Series 2.8A |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 76.20mm |
| Voltage - Secondary (Full Load) | Parallel 14V, Series 28V |
| Center Tap | No |
|
