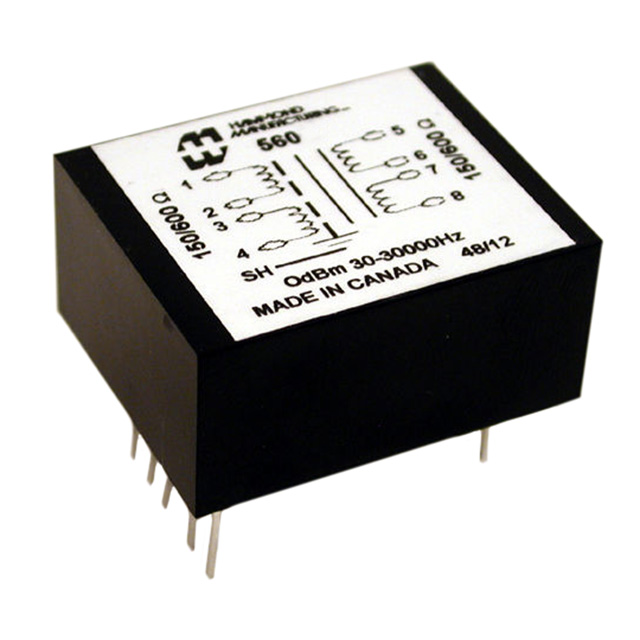

| Part number: | 560L |
| Description: | XFMR 600 150/150 / 20K 5K/5K TH |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 1.330" L x 1.640" W (33.78mm x 41.66mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Transformer Type | Broadcast Quality |
| Insertion Loss | 1dB Max |
| Frequency Range | 30Hz ~ 30kHz |
| Height - Seated (Max) | 0.850" (21.59mm) |
| Impedance - Primary (Ohms) | 600, 150/150 |
| Impedance - Secondary (Ohms) | 20k, 5k/5k |
| Frequency Response | ±1dB |
|
