| Part number: | 104Q |

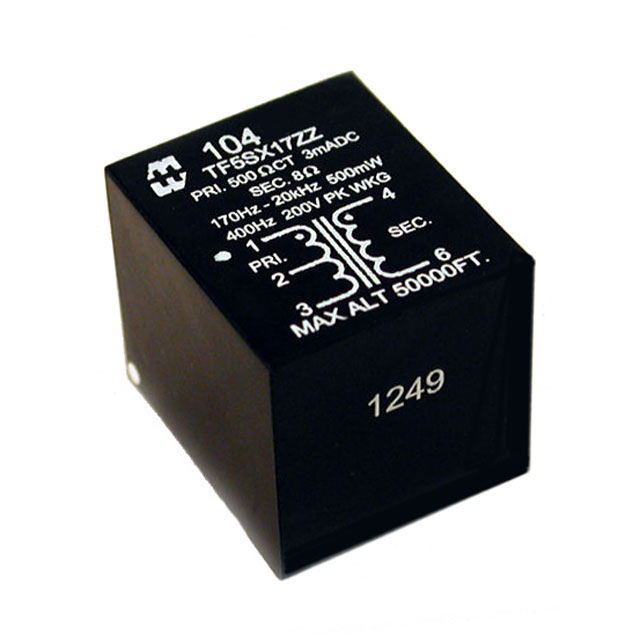

| Description: | AUDIO XFMR 500CT / 3.2 TH |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 0.860" L x 0.710" W (21.84mm x 18.03mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Transformer Type | Miniature Epoxy Potted |
| Insertion Loss | 1dB |
| Frequency Range | 200Hz |
| Voltage - Isolation | 200V |
| Height - Seated (Max) | 0.750" (19.05mm) |
| Impedance - Primary (Ohms) | 500CT |
| Impedance - Secondary (Ohms) | 3.2 |
| DC Resistance (DCR) - Primary | 27Ohm |
| DC Resistance (DCR) - Secondary | 400mOhm |
| Frequency Response | -1dB |
| Power Level | 500mW |
|
