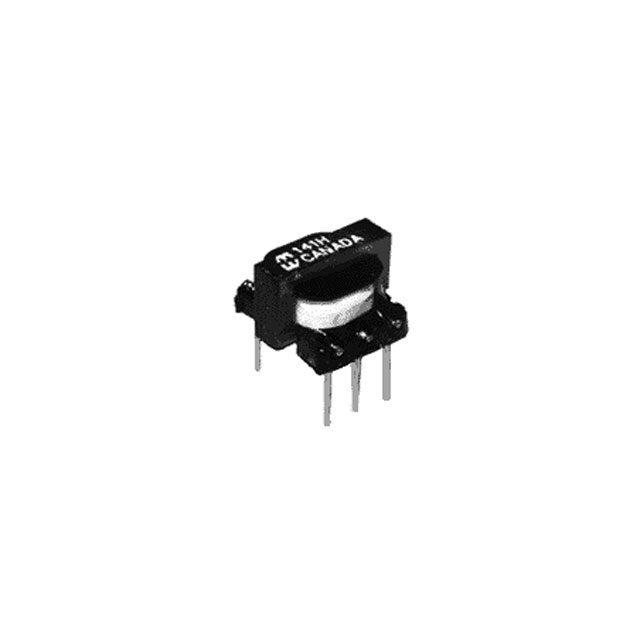

| Part number: | 141M |
| Description: | AUDIO XFMR 30KCT / 1.2KCT TH |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 0.780" L x 0.660" W (19.81mm x 16.76mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Transformer Type | Low Profile, Open Type |
| Frequency Range | 200Hz ~ 15kHz |
| Height - Seated (Max) | 0.460" (11.68mm) |
| Impedance - Primary (Ohms) | 30kCT |
| Impedance - Secondary (Ohms) | 1.2kCT |
| DC Resistance (DCR) - Primary | 1.1kOhm |
| DC Resistance (DCR) - Secondary | 47Ohm |
| Frequency Response | ±2dB |
| Power Level | 100mW |
|
