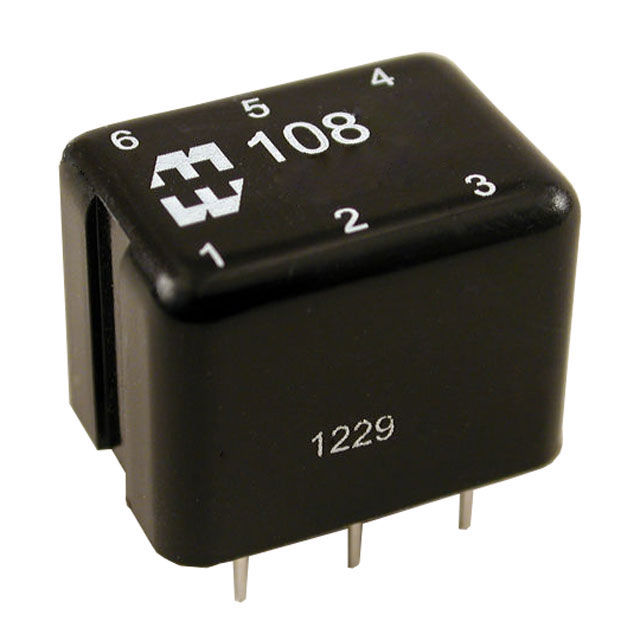

| Part number: | 108N |
| Description: | AUDIO XFMR 10KCT / 600CT TH |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 1.030" L x 0.770" W (26.16mm x 19.56mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Transformer Type | Miniature Epoxy Potted |
| Turns Ratio - Primary:Secondary | 4.08:1 |
| Frequency Range | 300Hz ~ 50kHz |
| Voltage - Isolation | 100VRMS |
| Height - Seated (Max) | 0.770" (19.56mm) |
| Impedance - Primary (Ohms) | 10kCT |
| Impedance - Secondary (Ohms) | 600CT |
| DC Resistance (DCR) - Primary | 370Ohm |
| DC Resistance (DCR) - Secondary | 35Ohm |
| Frequency Response | ±1.5dB |
| Power Level | 500mW |
|
