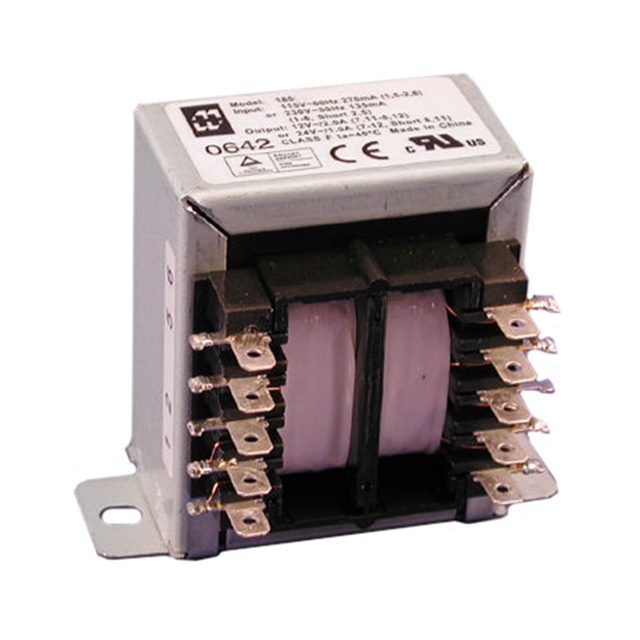

| Part number: | 185F28 |
| Description: | PWR XFMR LAMINATED 130VA CHAS MT |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 71.37mm L x 77.98mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 4 lbs (1.8 kg) |
| Termination Style | Solder, Quick Connect |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 130VA |
| Voltage - Isolation | 4000Vrms |
| Current - Output (Max) | Parallel 9.2A, Series 4.6A |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 85.60mm |
| Voltage - Secondary (Full Load) | Parallel 14V, Series 28V |
| Center Tap | No |
|
