| Part number: | 185C230 |

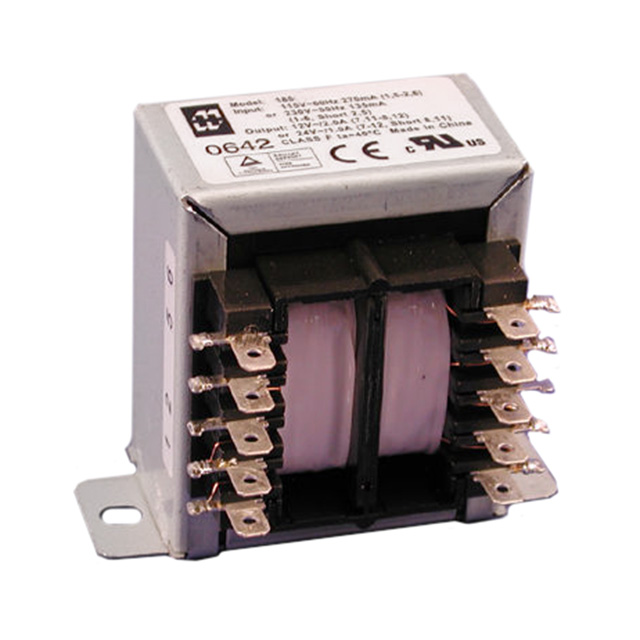

| Description: | PWR XFMR LAMINATED 25VA CHAS MT |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 71.37mm L x 56.39mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 1.3 lbs (589.7 g) |
| Termination Style | Solder, Quick Connect |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 25VA |
| Voltage - Isolation | 4000Vrms |
| Current - Output (Max) | Parallel 220mA, Series 110mA |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 58.67mm |
| Voltage - Secondary (Full Load) | Parallel 115V, Series 230V |
| Center Tap | No |
|
