| Part number: | IRG4RC20F |
| Description: | IGBT 600V 22A 66W DPAK |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 75 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

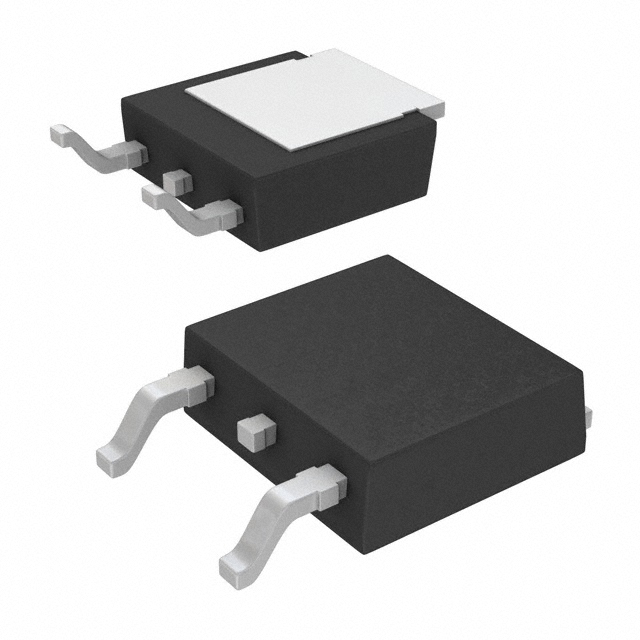

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 12A |
| Supplier Device Package | TO-252AA (DPAK) |
| Td (on/off) @ 25°C | 26ns/194ns |
| Switching Energy | 190µJ (on), 920µJ (off) |
| Test Condition | 480V, 12A, 50Ohm, 15V |
| Gate Charge | 27 nC |
| Current - Collector (Ic) (Max) | 22 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 44 A |
| Power - Max | 66 W |
|
