| Part number: | 282X |

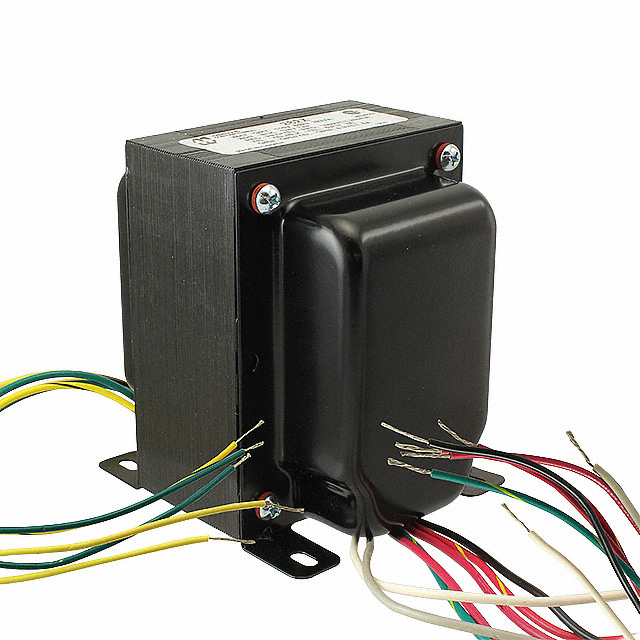

| Description: | PWR XFMR LAMINATED 273VA CHAS MT |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 95.25mm L x 114.30mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 11 lbs (5 kg) |
| Termination Style | Wire Leads |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Triple |
| Power - Max | 273VA |
| Voltage - Isolation | 2000Vrms |
| Current - Output (Max) | 230mA, 6A, 3A |
| Voltage - Primary | 115V |
| Height - Seated (Max) | 115.82mm |
| Voltage - Secondary (Full Load) | 1000V, 6.3V, 5V |
| Center Tap | Yes |
|
