| Part number: | ATS137-PG-A-A |

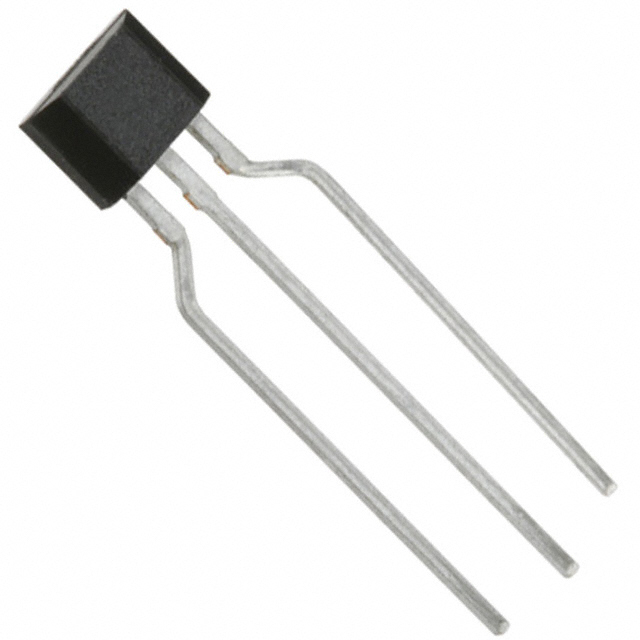

| Description: | MAGNETIC SWITCH UNIPOLAR 3SIP |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Tape & Box (TB) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |
| Features | Temperature Compensated |
| Package / Case | 3-SIP, Formed Leads |
| Output Type | Open Collector |
| Polarization | South Pole |
| Mounting Type | Through Hole |
| Function | Unipolar Switch |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Voltage - Supply | 3.5V ~ 20V |
| Technology | Hall Effect |
| Sensing Range | 10mT Trip, 1mT Release |
| Current - Output (Max) | 25mA |
| Current - Supply (Max) | 10mA |
| Supplier Device Package | 3-SIP |
| Test Condition | 25°C |
|
