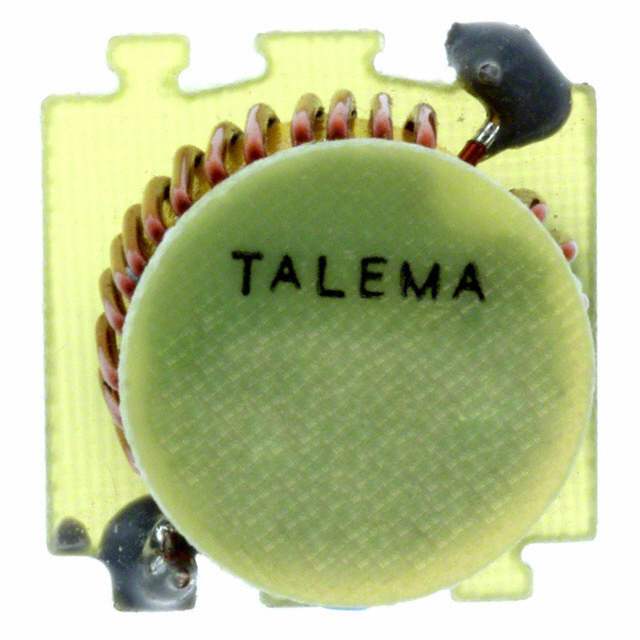

| Part number: | SWT-3.0-47 |
| Description: | FIXED IND 47UH 3A 50 MOHM TH |
| Manufacturer | Amgis |
| Encapsulation | Bulk |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Amgis" |
| Tolerance | ±20% |
| Package / Case | Radial, Horizontal (Open) |
| Size / Dimension | 0.701" L x 0.669" W (17.80mm x 17.00mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Toroidal |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 50mOhm Max |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 10 kHz |
| Height - Seated (Max) | 0.422" (10.71mm) |
| Inductance | 47 µH |
| Current Rating (Amps) | 3 A |
|
