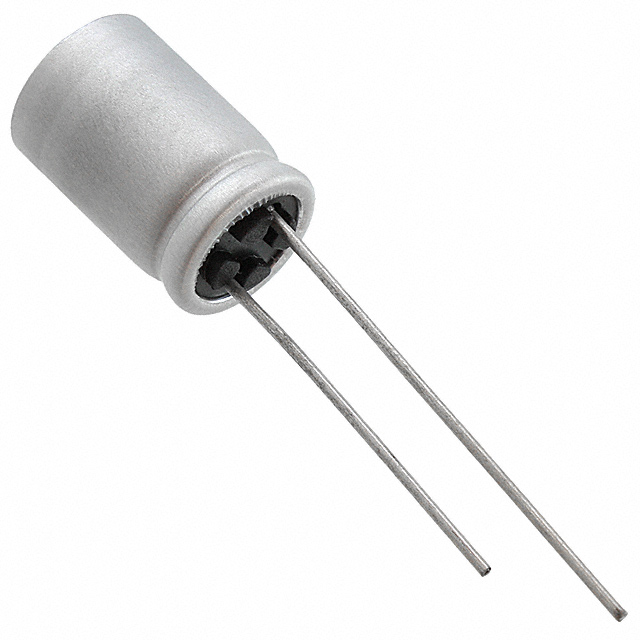

| Part number: | 2R5SEP680M+TSS |
| Description: | CAP ALUM POLY 680UF 20% 2.5V T/H |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Tape & Box (TB) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Mounting Type | Through Hole |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| ESR (Equivalent Series Resistance) | 13mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Capacitance | 680 µF |
| Voltage - Rated | 2.5 V |
| Ripple Current @ Low Frequency | 226 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.52 A @ 100 kHz |
|
