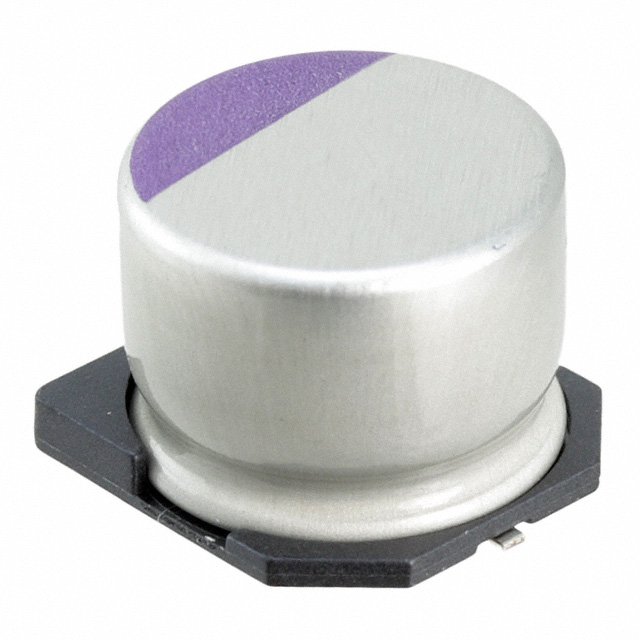

| Part number: | 10SVP330MX |
| Description: | CAP ALUM POLY 330UF 20% 10V SMD |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Capacitance | 330 µF |
| Voltage - Rated | 10 V |
| Ripple Current @ Low Frequency | 185 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.7 A @ 100 kHz |
|
