| Part number: | 750813049 |

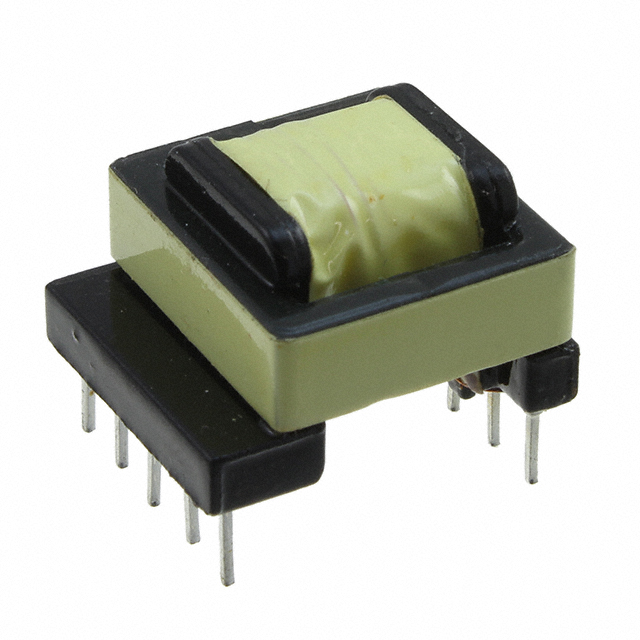

| Description: | XFMR LED DR DC/DC CONV 1.3MH TH |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Tray |
| Quantity | 90 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Size / Dimension | 0.665" L x 0.740" W (16.90mm x 18.80mm) |
| Mounting Type | Through Hole |
| Frequency | 70kHz |
| Type | For DC/DC Converters |
| Operating Temperature | -40°C ~ 125°C |
| Applications | LED Drivers, AC/DC SMPS |
| Voltage - Isolation | 3000Vrms |
| Intended Chipset | LM3447 |
| Voltage - Primary | 127 ~ 191V |
| Voltage - Auxiliary | 15V @ 20mA |
| Footprint | 0.665" L x 0.740" W (16.90mm x 18.80mm) |
| Chipset Manufacturer | Texas Instruments |
| Height - Seated (Max) | 0.529" (13.44mm) |
| Inductance @ Frequency | 1.3mH @ 70kHz |
|
