| Part number: | C2M0080120D |
| Description: | SICFET N-CH 1200V 36A TO247-3 |
| Manufacturer | Wolfspeed |
| Encapsulation | Bulk |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wolfspeed" |

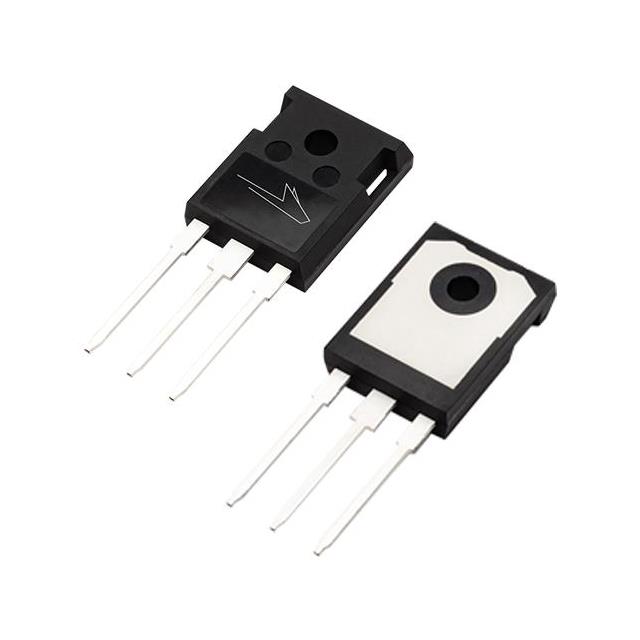

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 36A (Tc) |
| Rds On (Max) @ Id, Vgs | 98mOhm @ 20A, 20V |
| Power Dissipation (Max) | 192W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 5mA |
| Supplier Device Package | TO-247-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Vgs (Max) | +25V, -10V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Gate Charge (Qg) (Max) @ Vgs | 62 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 950 pF @ 1000 V |
|
