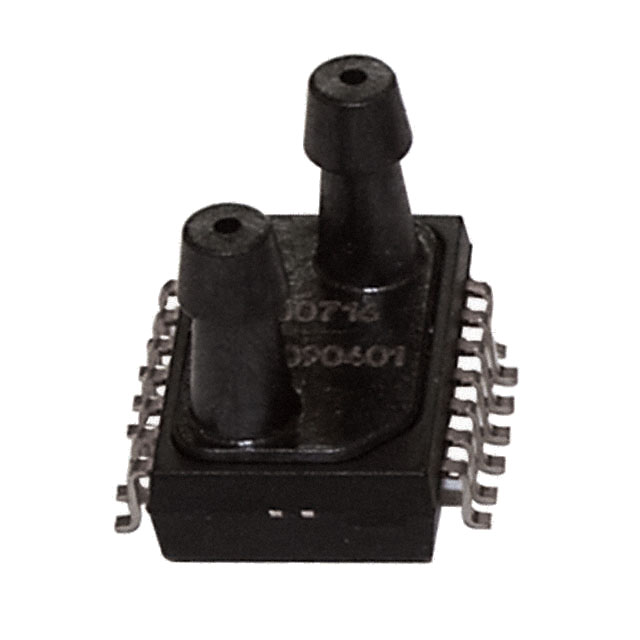

| Part number: | NPA-500B-10WD |
| Description: | SENSOR 0.36PSID 0.12" 4.5V |
| Manufacturer | Amphenol NovaSensor |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Amphenol NovaSensor" |
| Features | Amplified Output, Temperature Compensated |
| Package / Case | 14-SOIC Module, Top Port |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 0.36PSI (2.49kPa) |
| Pressure Type | Differential |
| Accuracy | ±1.5% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Gull Wing |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.12" (3mm) Tube, Dual |
| Applications | Board Mount |
| Port Style | Barbed |
| Maximum Pressure | 35PSI (241.32kPa) |
|
