| Part number: | MX7536KN |
| Description: | IC DAC 14BIT A-OUT 28DIP |
| Manufacturer | Maxim Integrated / Analog Devices |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Maxim Integrated / Analog Devices" |

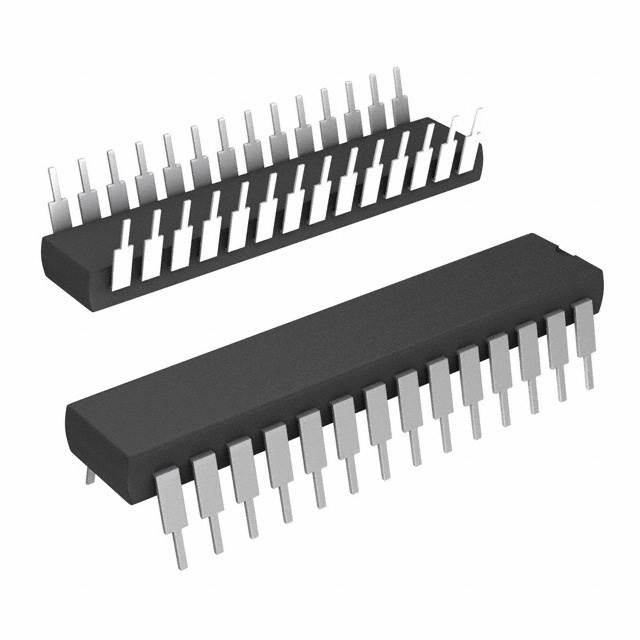

| Package / Case | 28-DIP (0.600", 15.24mm) |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 14 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 11.4V ~ 15.75V |
| Voltage - Supply, Digital | 11.4V ~ 15.75V |
| Settling Time | 1.5µs |
| Supplier Device Package | 28-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| DigiKey Programmable | Not Verified |
|
