| Part number: | DAC811KP |
| Description: | IC DAC 12BIT V-OUT 28DIP |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 13 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |

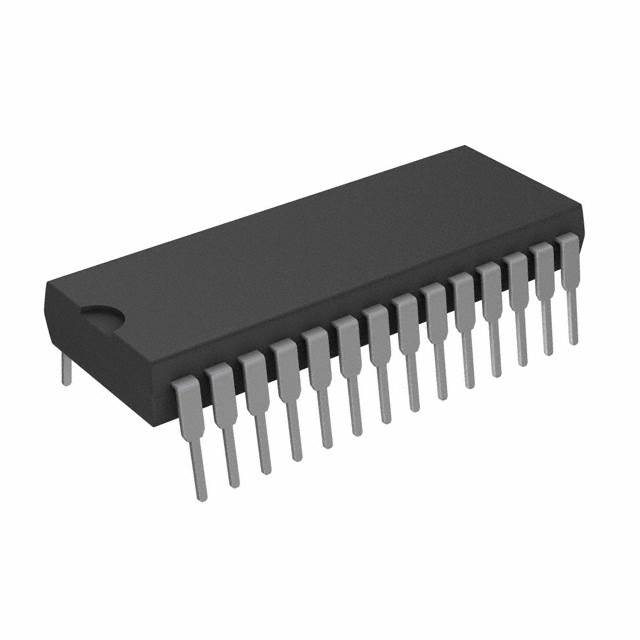

| Package / Case | 28-DIP (0.600", 15.24mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 4µs |
| Supplier Device Package | 28-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.125, ±0.25 |
| Differential Output | No |
| DigiKey Programmable | Not Verified |
|
