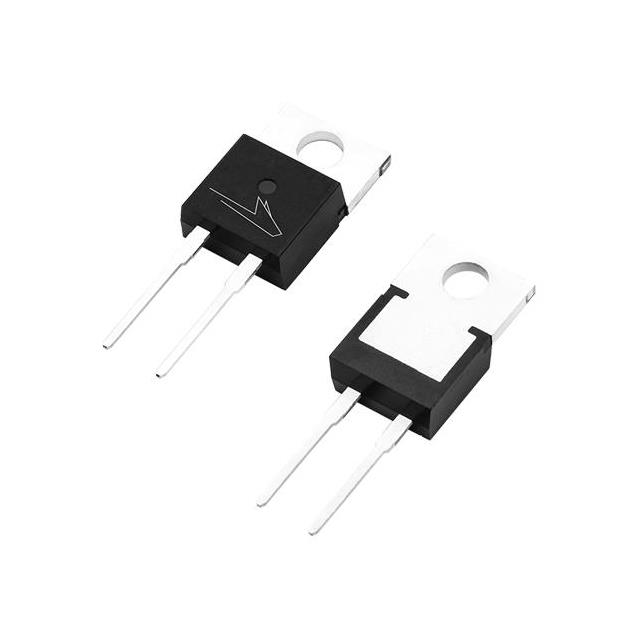

| Part number: | C4D02120A |
| Description: | DIODE SIL CARB 1.2KV 10A TO220-2 |
| Manufacturer | Wolfspeed |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wolfspeed" |
| Package / Case | TO-220-2 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 167pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | TO-220-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 2 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 1200 V |
|
