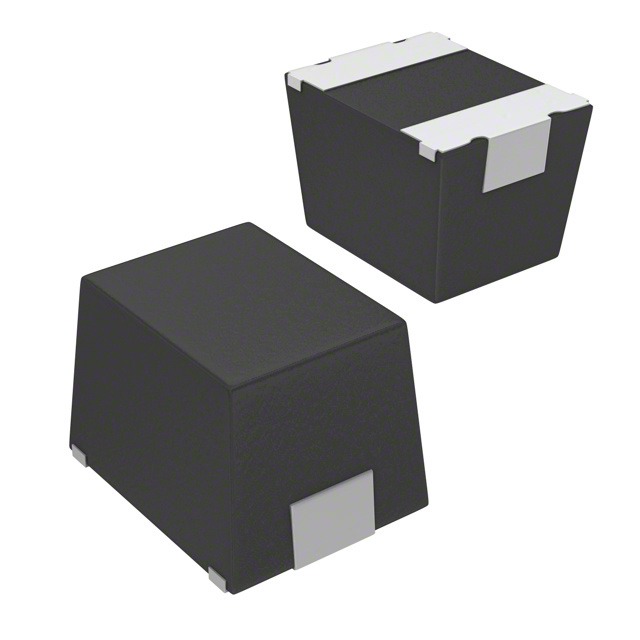

| Part number: | ISC1210ERR82K |
| Description: | FIXED IND 820NH 450MA 500MOHM SM |
| Manufacturer | Vishay / Dale |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay / Dale" |
| Tolerance | ±10% |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.49mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 500mOhm Max |
| Q @ Freq | 40 @ 25.2MHz |
| Frequency - Self Resonant | 160MHz |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 25.2 MHz |
| Supplier Device Package | 1210 |
| Height - Seated (Max) | 0.095" (2.41mm) |
| Inductance | 820 nH |
| Current Rating (Amps) | 450 mA |
|
