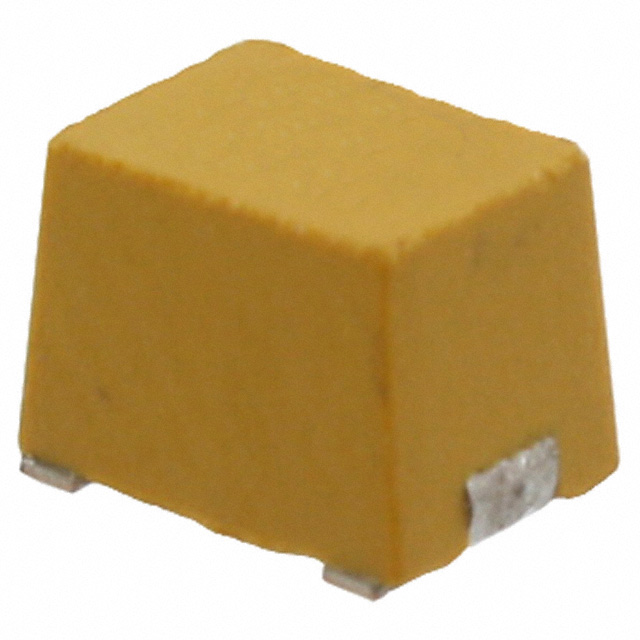

| Part number: | IMC1812ER561K |
| Description: | FIXED IND 560UH 50MA 30 OHM SMD |
| Manufacturer | Vishay / Dale |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay / Dale" |
| Tolerance | ±10% |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 30Ohm Max |
| Q @ Freq | 30 @ 790kHz |
| Frequency - Self Resonant | 3MHz |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 790 kHz |
| Supplier Device Package | 1812 |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Inductance | 560 µH |
| Current Rating (Amps) | 50 mA |
|
