| Part number: | TC74HC03AP |
| Description: | IC GATE NAND 4CH 2-INP 14DIP |
| Manufacturer | Toshiba Electronic Devices and Storage Corporation |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Toshiba Electronic Devices and Storage Corporation" |
| Features | Open Drain |

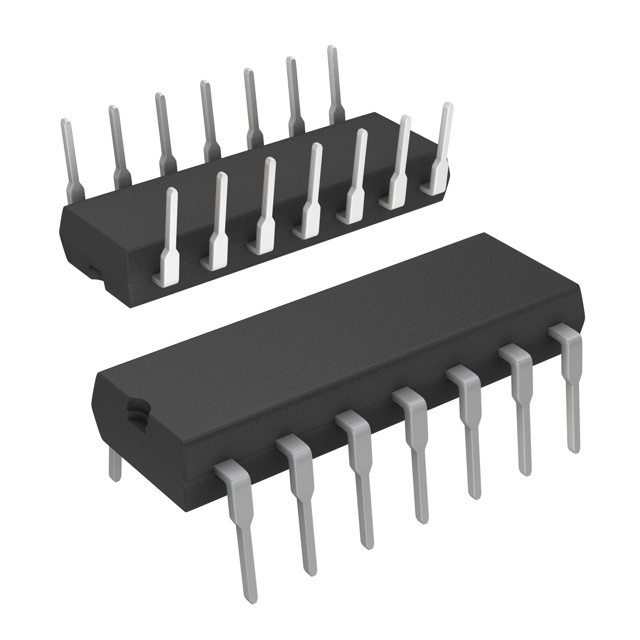

| Package / Case | 14-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | NAND Gate |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 6V |
| Current - Output High, Low | -, 5.2mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-DIP |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 1 µA |
|
