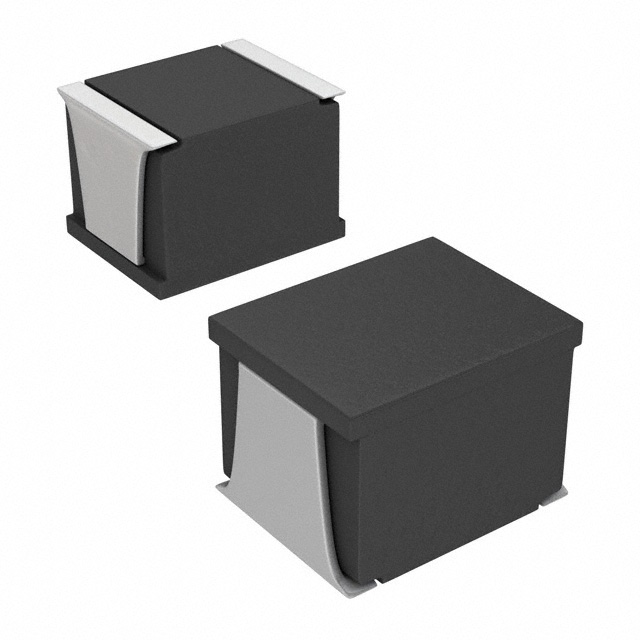

| Part number: | FSLU2520-22NKP2 |
| Description: | FIXED IND 22NH 550MA 210MOHM SMD |
| Manufacturer | Toko America Inc. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Toko America Inc." |
| Tolerance | ±10% |
| Package / Case | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 210mOhm Max |
| Q @ Freq | 15 @ 100MHz |
| Frequency - Self Resonant | 1.55GHz |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 MHz |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Inductance | 22 nH |
| Current Rating (Amps) | 550 mA |
|
