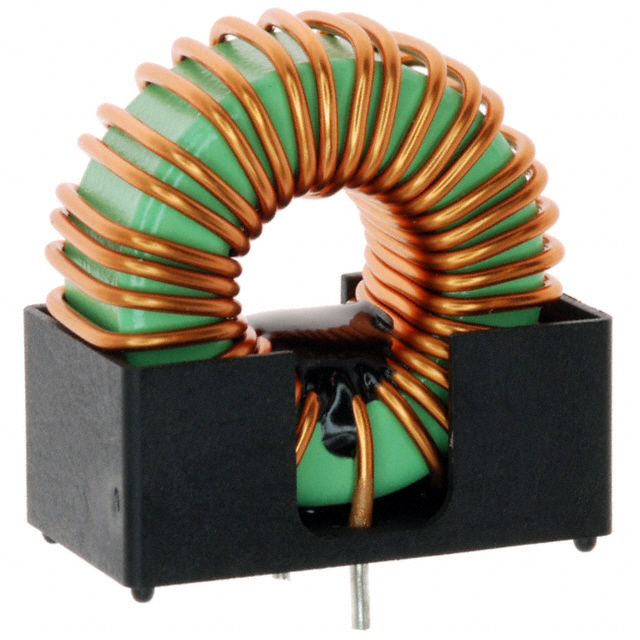

| Part number: | FIT106-2 |
| Description: | FIXED IND 197UH 4.8A 106 MOHM TH |
| Manufacturer | Triad Magnetics |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Package / Case | Radial, Vertical (Open) |
| Size / Dimension | 1.300" L x 0.725" W (33.02mm x 18.42mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Toroidal |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 106mOhm Max |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 10 kHz |
| Height - Seated (Max) | 1.400" (35.56mm) |
| Inductance | 197 µH |
| Current Rating (Amps) | 4.8 A |
|
