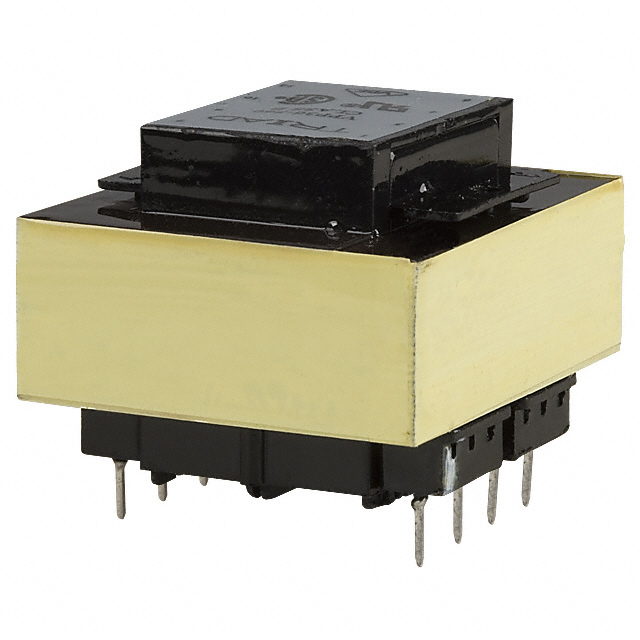

| Part number: | VPP12-1600 |
| Description: | PWR XFMR LAMINATED 20VA TH |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 57.15mm L x 47.63mm W |
| Mounting Type | Through Hole |
| Type | Laminated Core |
| Weight | 0.9 lb (408.23 g) |
| Termination Style | PC Pin |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 20VA |
| Voltage - Isolation | 4000Vrms |
| Current - Output (Max) | Parallel 3.2A, Series 1.6A |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 41.28mm |
| Voltage - Secondary (Full Load) | Parallel 6.3V, Series 12.6V |
| Center Tap | No |
|
