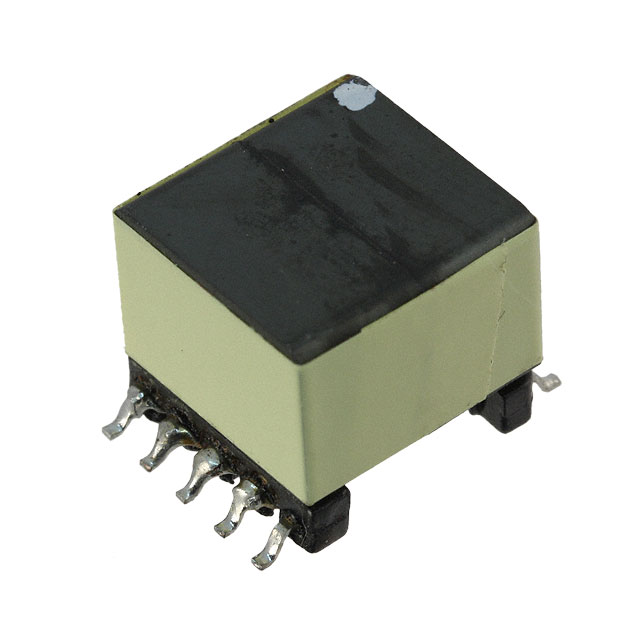

| Part number: | 7491199312 |
| Description: | XFMR POE DC/DC CONV 40UH SMD |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Size / Dimension | 0.530" L x 0.591" W (13.46mm x 15.00mm) |
| Mounting Type | Surface Mount |
| Frequency | 200kHz |
| Type | For DC/DC Converters |
| Operating Temperature | -40°C ~ 125°C |
| Applications | Power Over Ethernet (PoE) |
| Voltage - Isolation | 1500Vrms |
| Intended Chipset | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 |
| Voltage - Primary | 36 ~ 57V |
| Footprint | 0.530" L x 0.713" W (13.46mm x 18.10mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Inductance @ Frequency | 40µH @ 100kHz |
|
