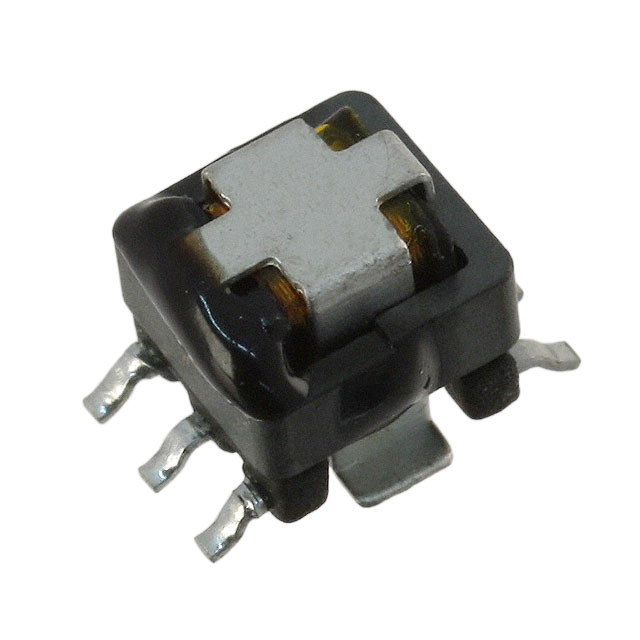

| Part number: | PA1005.050NLT |
| Description: | CURR SENSE XFMR 1:50 20A SMD |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 900 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Size / Dimension | 0.284" L x 0.330" W (7.21mm x 8.38mm) |
| Mounting Type | Surface Mount |
| Type | Invasive |
| Termination Style | Gull Wing |
| DC Resistance (DCR) | 0.75mOhm Primary, 1.5Ohm Secondary |
| Turns Ratio - Primary:Secondary | 1:50 |
| Frequency Range | 50kHz ~ 1MHz |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Inductance | 500 µH |
| Current Rating (Amps) | 20 A |
|
