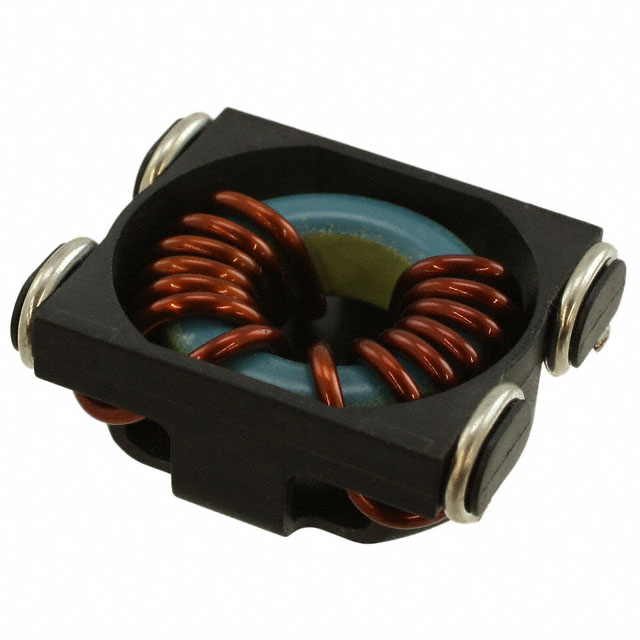

| Part number: | P0596NLT |
| Description: | INDUCT ARRAY 2 COIL 8UH SMD |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 75 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Tolerance | ±15% |
| Package / Case | Nonstandard |
| Size / Dimension | 1.220" L x 1.000" W (30.99mm x 25.40mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 130°C |
| Height | 0.500" (12.70mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 32 µH |
| Inductance - Connected In Parallel | 8 µH |
| Current Rating - Parallel | 24 A |
| Current Rating - Series | 12 A |
| DC Resistance (DCR) - Parallel | 3.5mOhm Max |
| DC Resistance (DCR) - Series | 13.8mOhm Max |
|
