| Part number: | PE-68383NL |

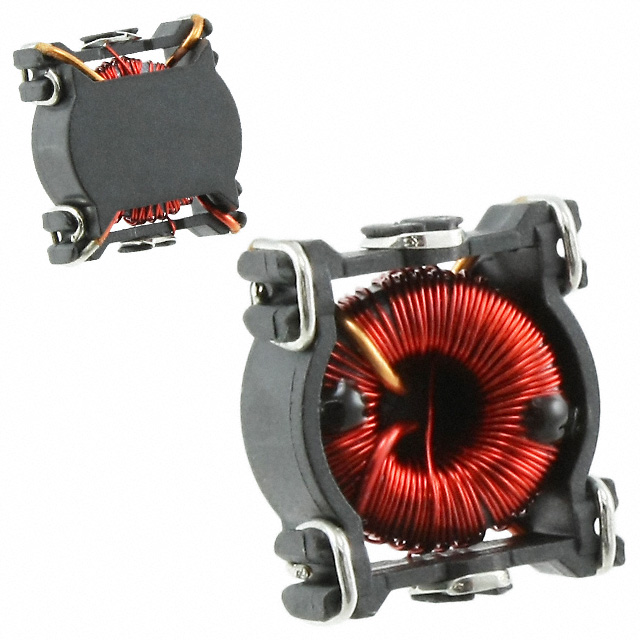

| Description: | CURR SENSE XFMR 1:1:200 SMD |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tube |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Size / Dimension | 0.495" L x 0.490" W (12.57mm x 12.45mm) |
| Mounting Type | Surface Mount |
| Type | Invasive |
| DC Resistance (DCR) | 1.15mOhm Primary, 3.9Ohm Secondary |
| Turns Ratio - Primary:Secondary | 1:1:200 |
| Frequency Range | 50kHz ~ 500kHz |
| Height - Seated (Max) | 0.280" (7.11mm) |
| Inductance | 59.2 mH |
|
