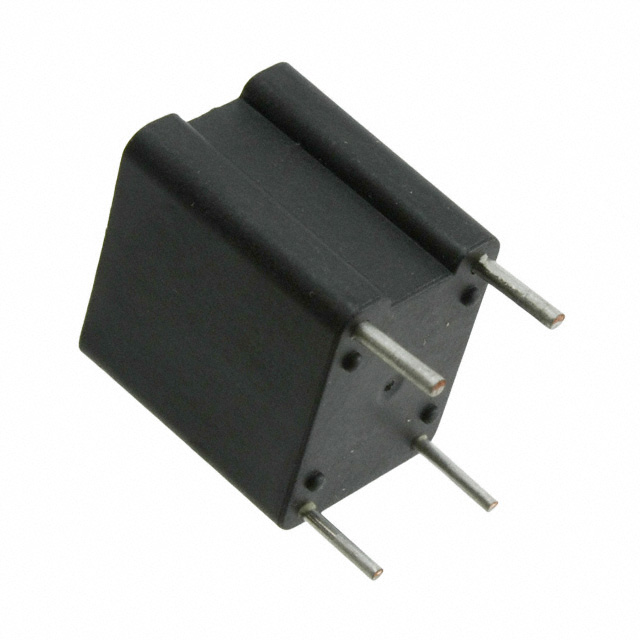

| Part number: | PE-67200NL |
| Description: | CURR SENSE XFMR 38A T/H |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tray |
| Quantity | 80 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Size / Dimension | 0.565" L x 0.750" W (14.35mm x 19.05mm) |
| Mounting Type | Through Hole |
| Type | Invasive |
| Termination Style | PC Pin |
| DC Resistance (DCR) | 200Ohm Primary, 4.5Ohm Secondary |
| Frequency Range | 10kHz ~ 200kHz |
| Height - Seated (Max) | 0.750" (19.05mm) |
| Current Ratio | 200:1 |
| Inductance | 80 mH |
| Current Rating (Amps) | 38 A |
|
