| Part number: | 744870100 |

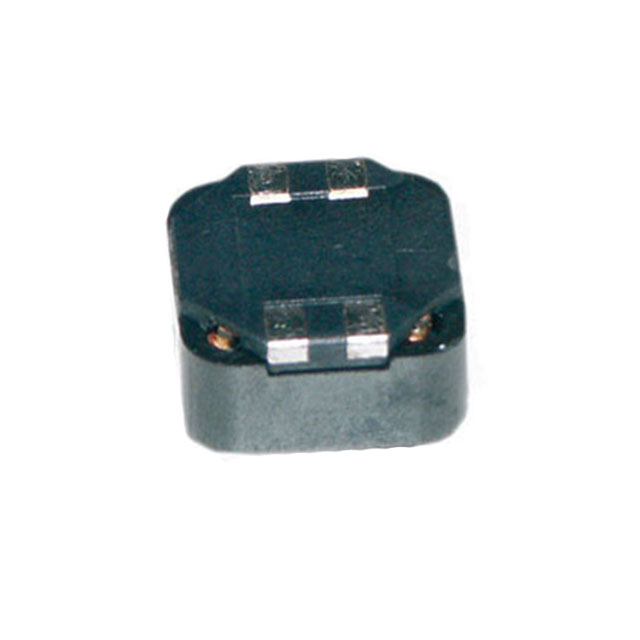

| Description: | INDUCT ARRAY 2 COIL 10UH SMD |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| Height | 0.335" (8.50mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 40 µH |
| Inductance - Connected In Parallel | 10 µH |
| Current Rating - Parallel | 2.7 A |
| Current Rating - Series | 1.35 A |
| Current Saturation - Parallel | 7 A |
| Current Saturation - Series | 3.5 A |
| DC Resistance (DCR) - Parallel | 44mOhm Max |
|
