| Part number: | 750871630 |

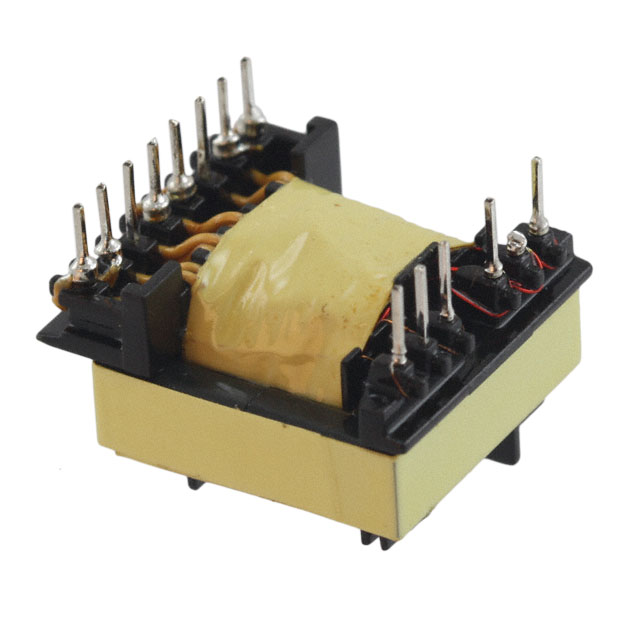

| Description: | XFMR LED DR AC/DC CONV 500UH TH |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Tray |
| Quantity | 70 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Size / Dimension | 0.827" L x 0.984" W (21.00mm x 25.00mm) |
| Mounting Type | Through Hole |
| Frequency | 100kHz |
| Type | For AC/DC Converters |
| Operating Temperature | -40°C ~ 125°C |
| Applications | LED Drivers, AC/DC SMPS |
| Voltage - Isolation | 4000Vrms |
| Intended Chipset | TEA1623PH |
| Voltage - Primary | 120 ~ 385V |
| Voltage - Auxiliary | 12V @ 30mA |
| Footprint | 0.827" L x 0.984" W (21.00mm x 25.00mm) |
| Chipset Manufacturer | NXP Semiconductors |
| Height - Seated (Max) | 0.635" (16.13mm) |
| Inductance @ Frequency | 500µH @ 10kHz |
|
