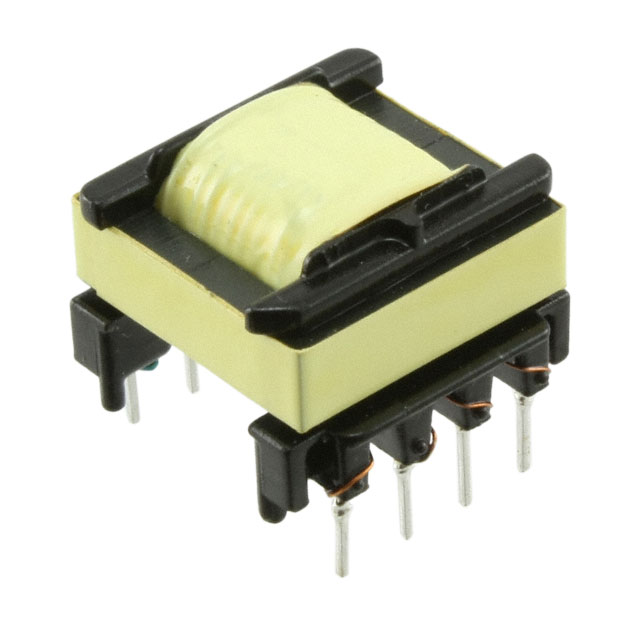

| Part number: | 750311402 |
| Description: | XFMR LED DR AC/DC CONV 1.48MH TH |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Tray |
| Quantity | 90 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Size / Dimension | 0.707" L x 0.799" W (17.96mm x 20.30mm) |
| Mounting Type | Through Hole |
| Frequency | 60kHz |
| Type | For AC/DC Converters |
| Operating Temperature | -40°C ~ 125°C |
| Applications | LED Drivers, AC/DC SMPS |
| Voltage - Isolation | 4000Vrms |
| Intended Chipset | SSL2101, SSL2102 |
| Voltage - Primary | 120 ~ 375V |
| Footprint | 0.707" L x 0.799" W (17.96mm x 20.30mm) |
| Chipset Manufacturer | NXP Semiconductors |
| Height - Seated (Max) | 0.568" (14.43mm) |
| Inductance @ Frequency | 1.48mH @ 10kHz |
|
